HD45 - Insulated Box with Chiller Unit
HYUNDAI TRUCK & BUS - QATAR
HD45L Single Cabin Truck
- GVM: 4.5 Tons
- Chassis Payload ~ 2.5 Tons
- Net Payload: 2 Tons
- No of Seats: 2+1 nos.
- Wheel Base: 2810 mm
- Width: 1780 mm (wide cabin)

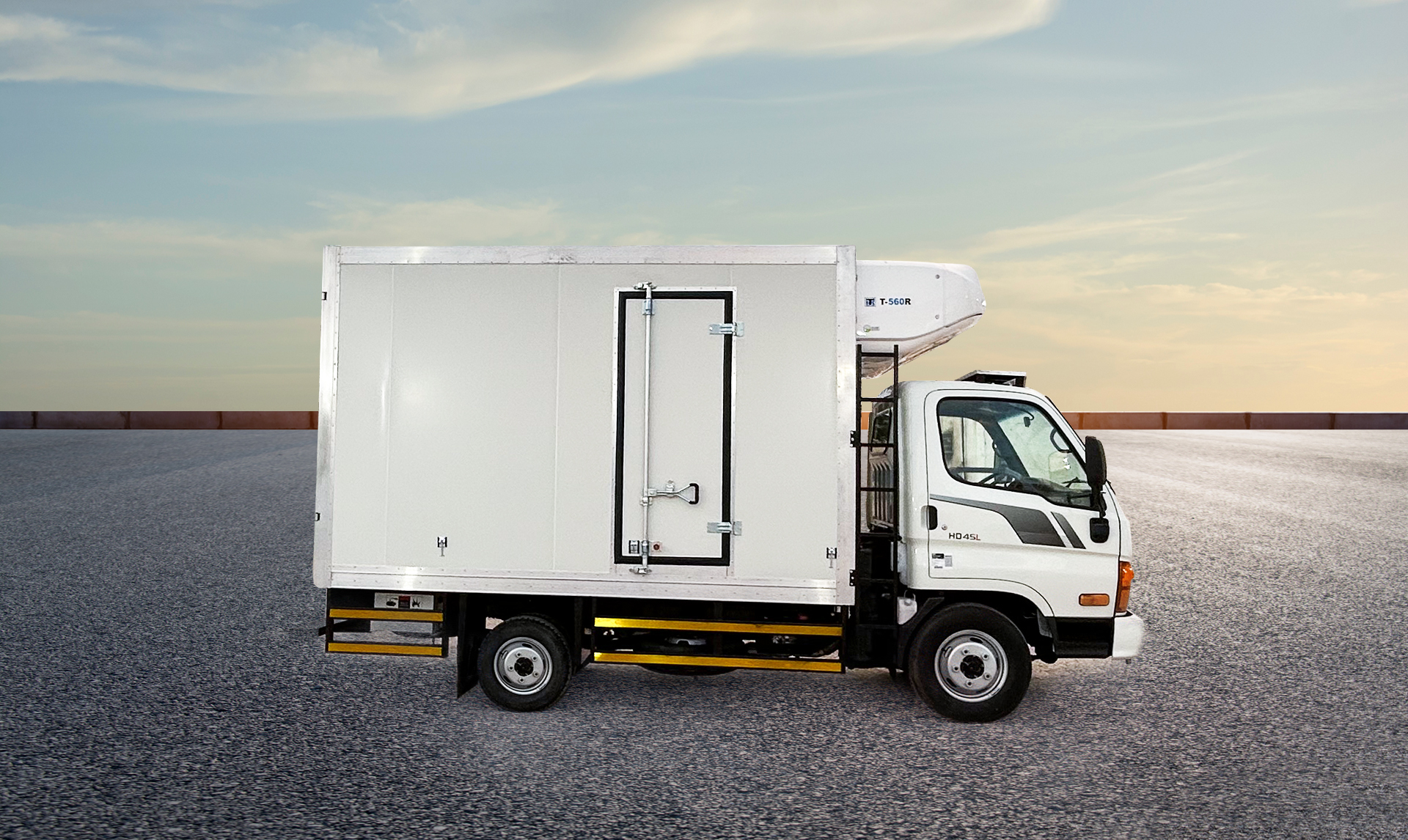

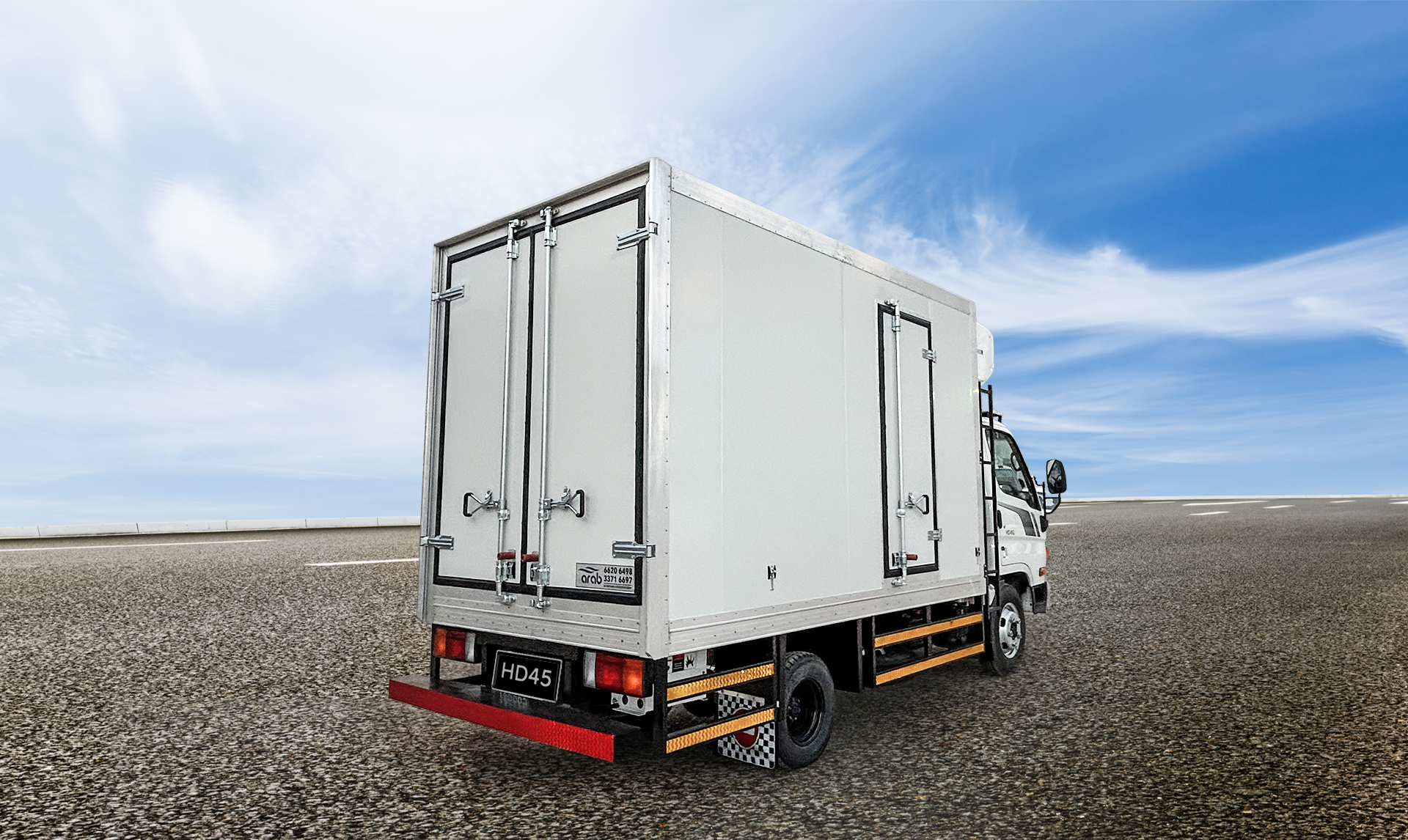

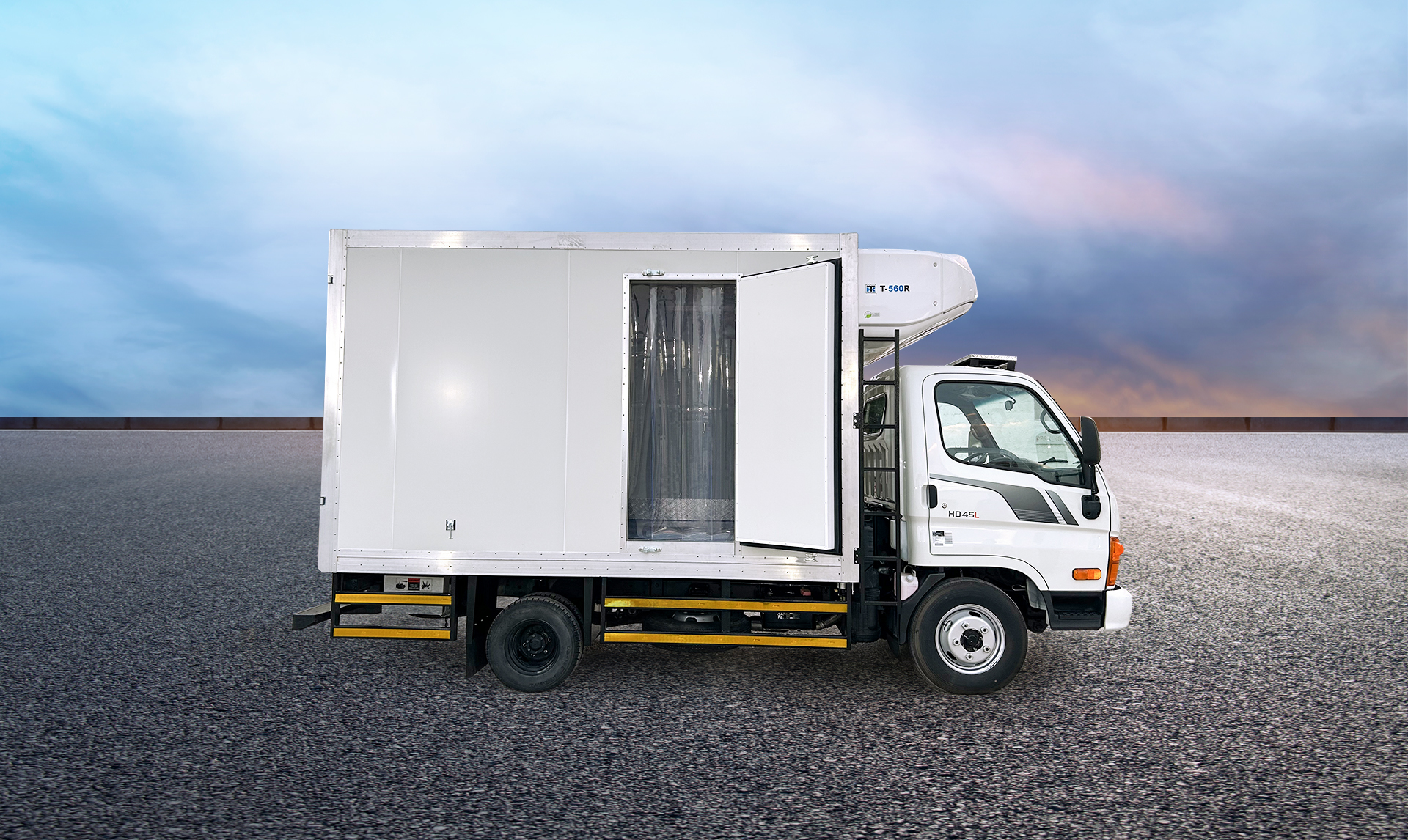

HD45L - Insulated Box with Chiller unit.
External Dimension:3.5m (L) x2m(W) x2.1m (H)
Internal Dimension:3.3m(L) x 1.8m (W) x1.9m (H)
- Side, Front & Roof made of 100mm Insulation panel (Poly Urethane)
- Inside Volume ~11 cbm
- Outer and inner skin 0.50 mm white polyester pre painted G.I. sheet
- Rear split door with container type locks
- Removable plastic strip door curtains with SS Clips. Double layer side crash guard
- With single wing side door on one side
- GRP floor top smooth finish (100% waterproof)
- 1 x ceiling light & 1 x drainpipe (if required)
- Rear bumper with entry step.
- External Length = 3.4m
- External Width = 2.1m
- External Height = 2.1m
- Internal Length = 3.2m
- Internal Width = 1.9m
- Internal Height = 1.9m
Additional Equipment: Thermo King T560 (Freezer) or equivalent
Machine driven by independent Diesel engine or electric standby suitable for maintain freezing temperature in compartment from -18 ℃ to + 25 ℃ @ ambient temperature of 40 ℃
